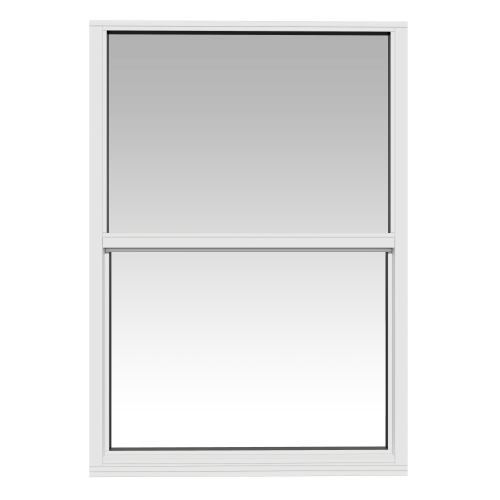

Florida Product Approved Single Hung window- the bottom panel, or sash, moves vertically. The series 100 single hung window is an upgrade from the series 50 and features ultralift balances.
Features
- Heavy-gauge aluminum T6 alloy profile
- Stainless steel assembly screws
- Sweep locks
- Double weather-stripping
- Block & tackle balances
- Weep Holes
- Flange Frame
Additional Features
- 5/16″ HS/HS
- Ultra-lift balances
- NFRC Certified
- Florida Product Approval:
- Large Missile and
- Small Missile
Dimensions
- 2 3/4″ Maximum Frame Depth
- Maximum Width Size: 53 1/8″
- Maximum Height Size: 76″
- Max Size: 53 1/8″ x 76″ (LMI) 37″ x 63″ (SMI)
- (Large Missile) Design Pressure: +75/-90 psf
Options
- 7/16″ HS/HS and 3/4″ HS/HS
- Energy efficient LoE Coatings
- Laminated insulating glass with argon
- Equal leg adapter
- Egress sash locks

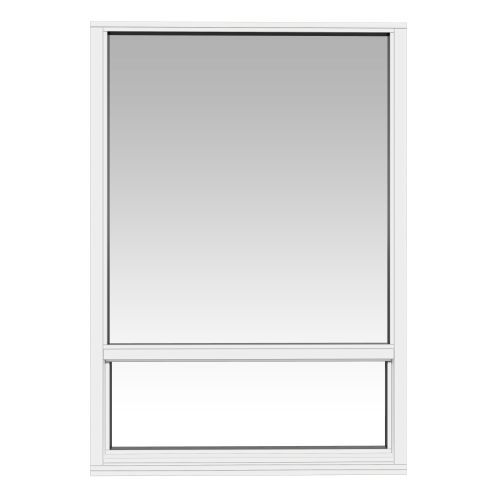

- Unequal Vent
- Extruded double-applied 1″ colonial muntins
- Available Mutins:
- 1″ Flat-Flat
- 1″ Ogee-Flat
- Available in Colonial, Brittany 6, Brittany 9
